Tier-0 logical router provides an on and off gateway service between the logical and physical network.
An NSX Edge cluster can back multiple tier-0 logical routers. Tier-0 routers support the BGP dynamic routing protocol and ECMP.
If you missed previous parts in this blogpost series. Here is the Links:-
Part - 1
Part - 2
Part - 3
Part - 4
Part - 5
Part - 6
Part - 7
Part - 8
Part - 9
Part - 10
Part - 11
Part - 12
Part - 13
How to Add Tier-0 Logical Router
Prerequisites
1. Login to NSX Manager UI
2. Routing > Routers > Click on + Sign > Tier-0 Router > Configure Name, Select Edge Cluster and High Availability Mode (Active-Active or Active-Passive) > Add
By default, the active-active mode is used. In the active-active mode, traffic is load balanced across all members. In active-standby mode, all traffic is processed by an elected active member. If the active member fails, a new member is elected to be active.

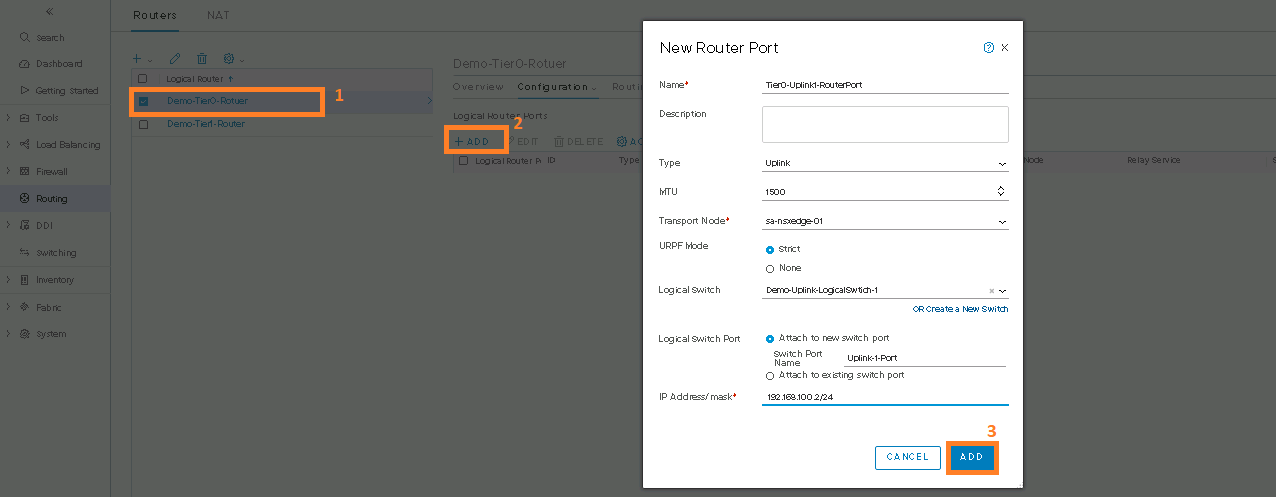

3. Add Uplink Router Port on Tier-0 Router
4. I have added two uplink ports. First One was discussed in above screenshot and second one is in below screenshot.
An NSX Edge cluster can back multiple tier-0 logical routers. Tier-0 routers support the BGP dynamic routing protocol and ECMP.
If you missed previous parts in this blogpost series. Here is the Links:-
Part - 1
Part - 2
Part - 3
Part - 4
Part - 5
Part - 6
Part - 7
Part - 8
Part - 9
Part - 10
Part - 11
Part - 12
Part - 13
How to Add Tier-0 Logical Router
Prerequisites
- Verify that at least one NSX Edge is installed.
- Verify that your NSX Controller cluster is stable.
- Verify that an edge cluster is configured.
1. Login to NSX Manager UI
2. Routing > Routers > Click on + Sign > Tier-0 Router > Configure Name, Select Edge Cluster and High Availability Mode (Active-Active or Active-Passive) > Add
By default, the active-active mode is used. In the active-active mode, traffic is load balanced across all members. In active-standby mode, all traffic is processed by an elected active member. If the active member fails, a new member is elected to be active.
3. Add Uplink Router Port on Tier-0 Router
4. I have added two uplink ports. First One was discussed in above screenshot and second one is in below screenshot.
